The designed production capacity of Chahasu Coal Mine of Guodian & Jiantou Inner Mongolia Energy Investment Co., Ltd. is 15.0 Mt/a. The production shaft of this coal mine employs inclined shaft development, belt transportation and mainly be responsible for coal transportation. The service shaft employs vertical shaft development, one level hoisting underground with the hoisting height 446.5m.
In 30 July, 2010, XCMSE was awarded a contract of two off big cages c/w head and tail rope attachments by Guodian & Jiantou Inner Mongolia Energy Investment Co., Ltd.

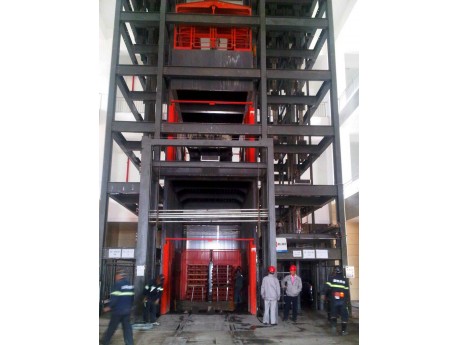

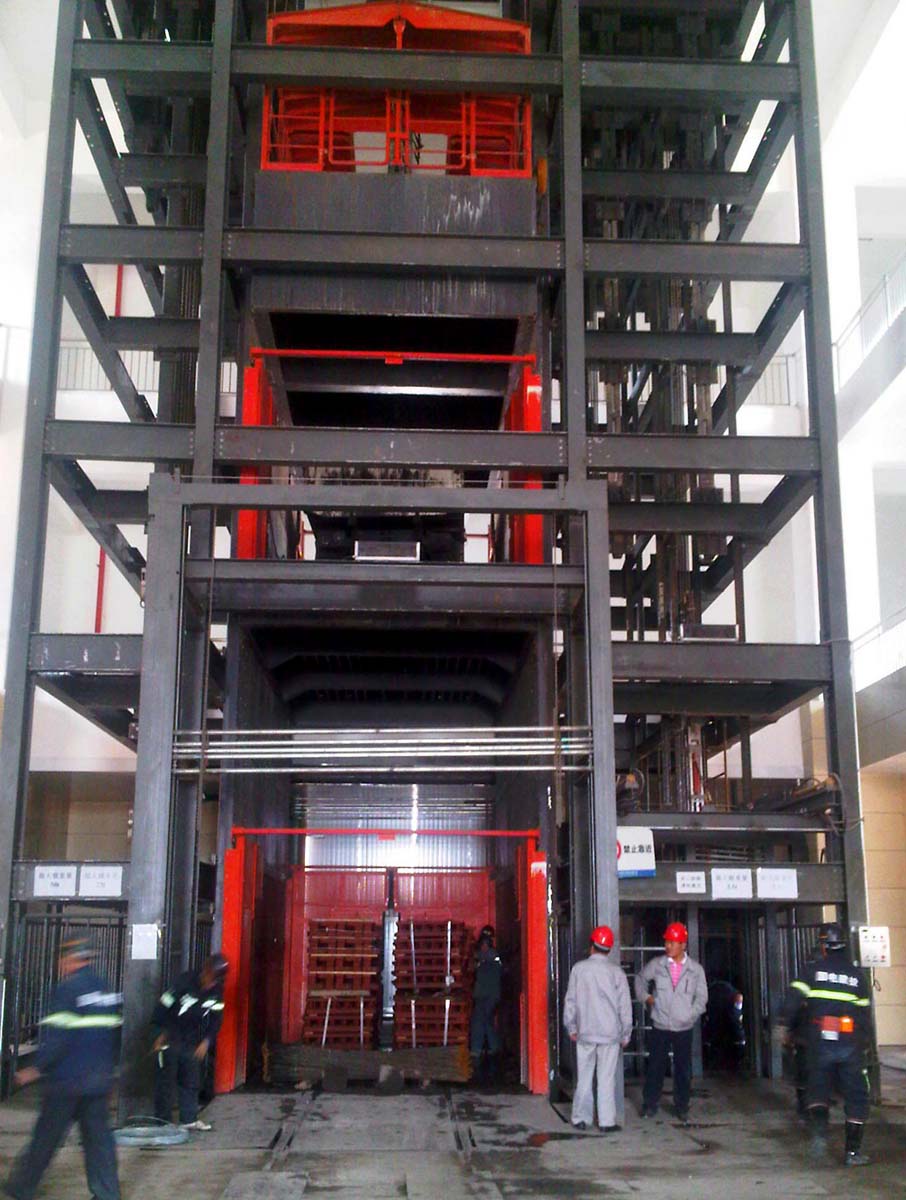

The net diameter of service shaft is φ9.2m. The shaft is mounted with two sets of hoisting conveyances. One is customized double-deck six-rope big cage c/w compatible counterweight for hoisting people, hydraulic support, trackless rubber wheel car, etc. The other one is customized double-deck four-rope transportation cage for purpose of loose men-riding and first-aid hoisting task.
Manufacturing supervision was undertaken by SIEMAG-TECBERG.
|
|
|
Length:
|
7600 mm
|
|
Width:
|
3330 mm
|
|
Height:
|
11600 mm
|
|
Distance bet. guide rails:
|
5500 mm×3500 mm
|
|
Max. terminal load:
|
1345 kN
|
|
Men-riding capacity:
|
130 persons each deck
|
|
Type of head rope attachment:
|
XSZ300
|
|
Type of tail rope attachment:
|
XWB260(B)
|
|
Guiding device:
|
φ446 roller guide
|
|
Clear height of upper deck:
|
3200 mm
|
|
Clear height of lower deck:
|
5000 mm
|
|

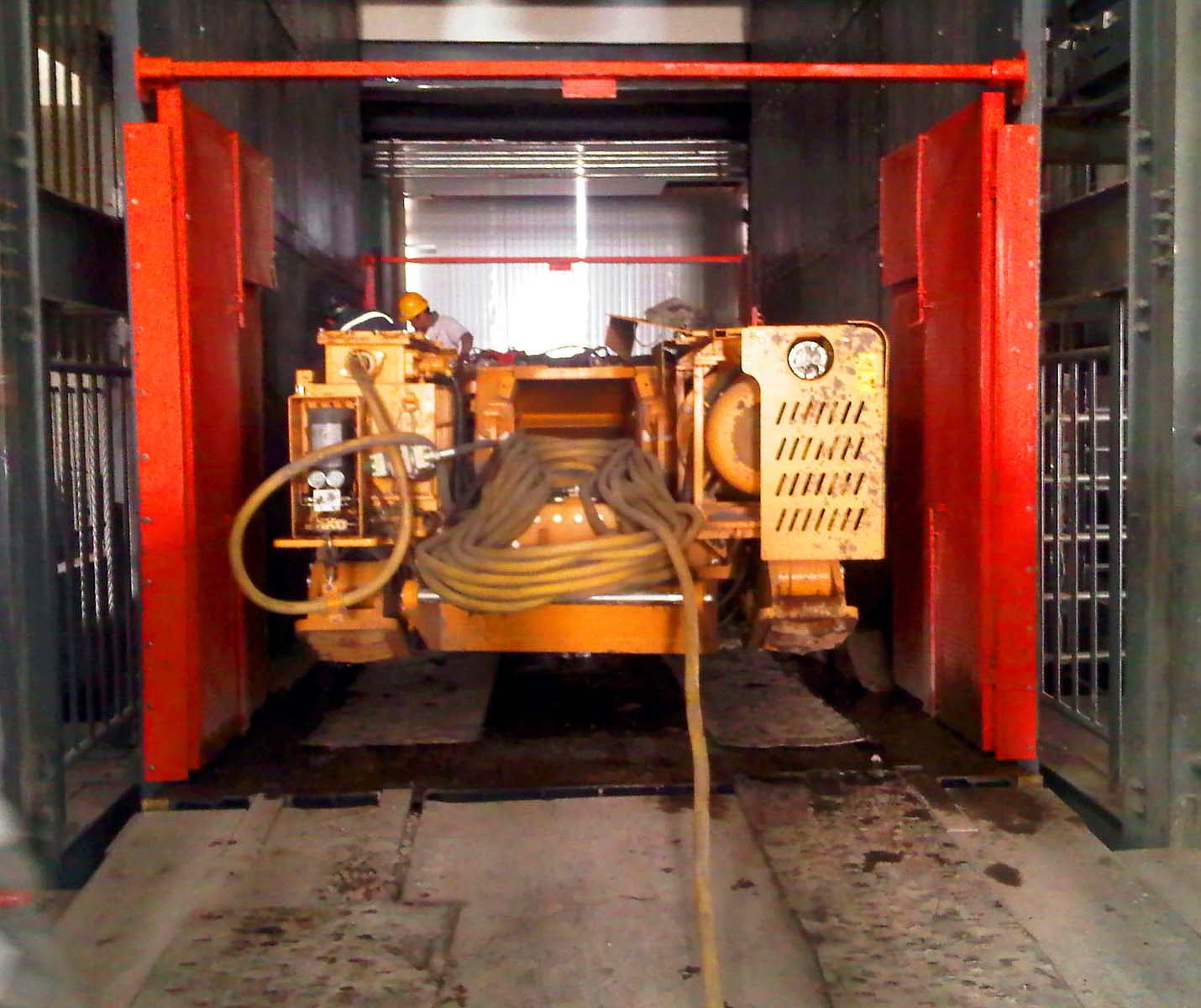

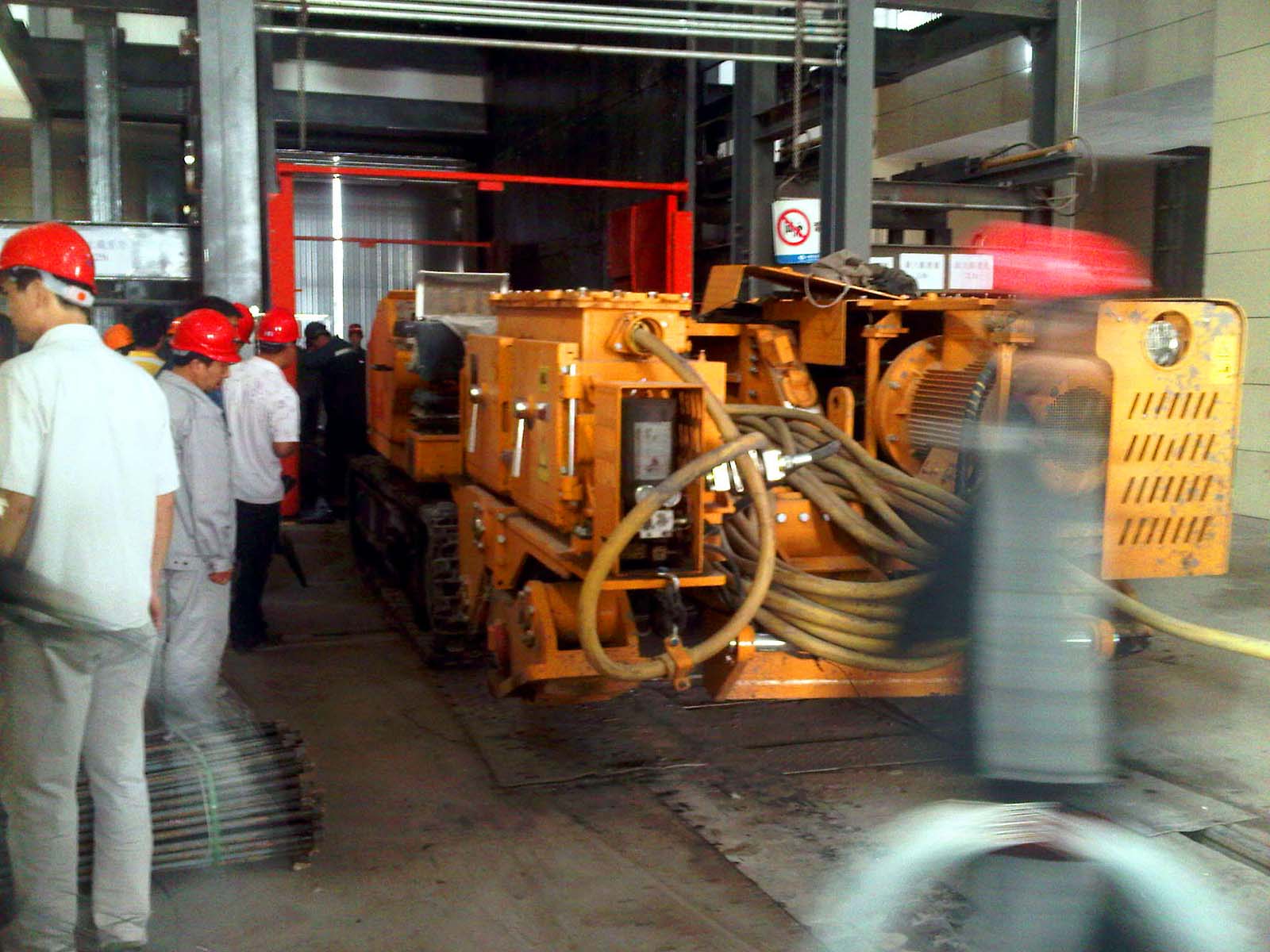

Deadweight of each rubber wheel car;
max. load:
|
9000 kg;
5000 kg
|
|
