Jinchuan Group Ltd.(JNMC), which is the No.1 nickel producer in China, operates a nickel mine in Jinchang, an industrial city in the east of Hexi Corridor in Gansu Province.
ABB, the leading power and automation technology group, has signed a contract with Jinchuan Group Limited (JNMC) to supply a mine hoist to its nickel mine.
In November, 2008, XCMSE was awarded a contract by ABB(China) to manufacture and deliver the following equipments as its subcontractor:
■ Two off 31t tilting skips
■ Unloading curved rail
■ Traverse car
■ Measuring pockets
Up until now, the above mentioned equipments have been running successfully for 3 years.
Manufacturing supervision is undertaken by ABB.
|
|
|

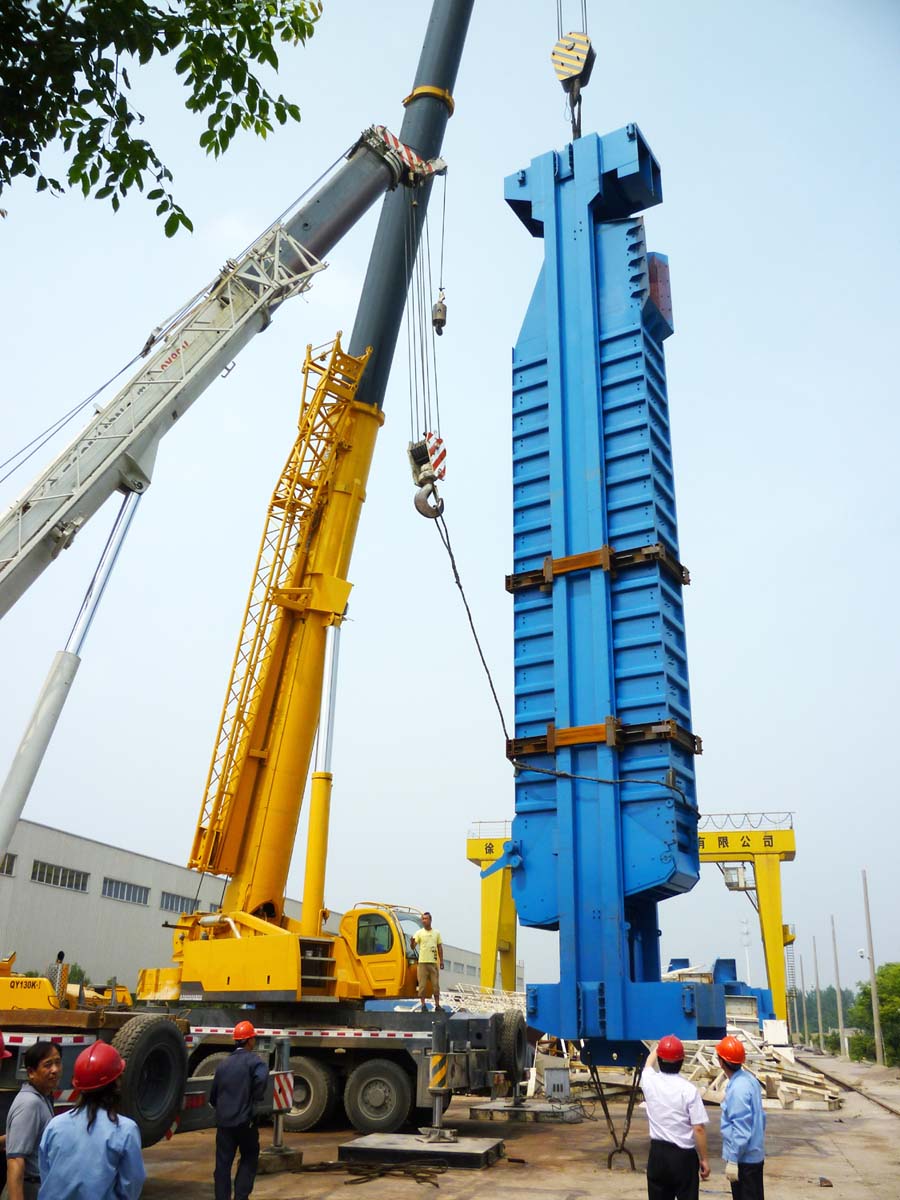

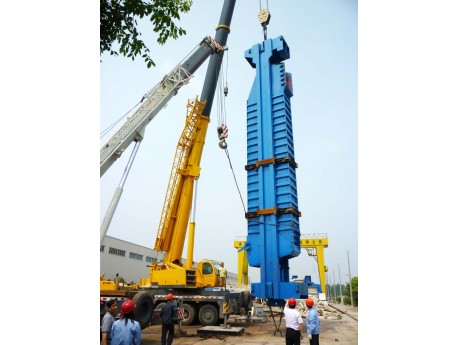

Skip
|
|
|
Designed payload:
|
32.5 t
|
|
Total weight (incl. ropeattachments):
|
31 t
|
|
Nominal volume:
|
18 m3
|
|
Max. volume:
|
19 m3
|
|
Dumping & loading type:
|
Opposite sides
|
|
Dumping scroll
|
|
|
Driven method:
|
Hydraulically operated
|
|
Function:
|
Tilting skip box to open the bottom
door to empty the skip
|
|
Consist of:
|
Movable scrolls in steel construction
|
|
Traverse car
|
|
|
Driven method:
|
Hydraulically operated
|
|
Wear plate material:
|
NM360
|
|
Thickness of wear plate:
|
16 mm
|
|
Weight:
|
5000 kg
|
|
Measuring pocket
|
|
|
Payload:
|
31 t
|
|
Nominal volume:
|
18 m3
|
|
Max. volume:
|
19 m3
|
|
Weight:
|
19000 kg
|
|
